Takeaway: Undocked query windows in SSMS are now top-level windows.

SSMS Release Cycle

As you may know, SQL Server Management Studio (SSMS) now has its own release cycle independent of SQL Server’s release cycle. This means the Microsoft team who work on SSMS now get to release as often as they like. And it looks like they are. In fact it looks like they’ve released five times so far in 2016.

Many of the changes are small changes, and many of them don’t impact me, but I noticed one cool change that I’d like to draw more attention to.

Undocked Query Windows are Spiffier

The March 2016 Refresh (13.0.13000.55 Changelog) updates SSMS to use the new Visual Studio 2015 shell. Part of that change means that undocked windows are now top-level windows.

Top level windows are windows without parents so the undocked window is not a child window of the main SSMS window (but it is part of the same process). And so it gets its own space in the task bar, and participates in alt+tab when you switch between windows.

Also these undocked windows can be a collection of query windows. Compare the new style with the old style.

Old Style, limit of one query window:

New Style, many query windows:

If you’re a multitasking Developer or DBA who works with SSMS a lot, I think you’ll like this new feature. Undocked query windows now feel like real windows.

Remember SSMS is free (even though SQL Server is not). If you want to download the latest version of SSMS, you can do that here.

Have you ever played “Fortunately/Unfortunately”? It’s a game where players alternately give good news and bad news. It goes something like this:

Databases such as SQL Server make it easy to retrieve sets of data.
Unfortunately, it’s kind of awkward to send sets of data to SQL Server.
Fortunately, table-valued parameters (TVPs) make this easier.
Unfortunately, queries that use TVPs often suffer from non-optimal query plans.
Fortunately, creating primary key or unique key constraints gives us a way to index table types.
Unfortunately, those constraints prevent any kind of plan forcing.
Fortunately, SQL Server 2014 lets us create named indexes for table types which lets us force plans if we need to.

Let’s break this down:

Sending Sets of Data to SQL Server is Awkward

It always has been. Originally, developers were forced to send a CSV string to SQL Server and write a do-it-yourself function to split the string into a set of values.

• In 2005, Microsoft introduced XML and CLR which let developers shred or split strings in new ways,
• In 2008, Microsoft introduced table-valued parameters,
• In 2014, they introduced In-Memory TVPs,
• In 2016, there’s a new SPLIT_STRING() function

So there are more options now then there ever have been and they each have their own issues.

Aaron Bertrand explores some of those performance issues in STRING_SPLIT() in SQL Server 2016. It’s a specific use-case where he focuses on duration. In our case, we focus on aggregated system load like worker time or reads so we don’t necessarily value parallel query plans. But I love his methods. He gives us tools that let us evaluate our own situation based on our own criteria.

I’m going to focus on TVPs which is the most natural method of sending sets of data to SQL Server from a syntax point of view.

Indexes on Table Types

Table-valued parameters are implemented using table types. Before SQL Server 2014, the only way to index a table type was to define a primary key or a unique key on it like this:

create type dbo.TypeWithPK
    as table ( id int primary key );

The syntax for CREATE TYPEprevents us from naming our primary key and this turns out to be important. Every time I define and use a table variable, SQL Server will dynamically generate a name for the primary key. So when I look at the plan for

declare @ids dbo.TypeWithPK;
select * from @ids

I see that it has a primary key named [@ids].[PK__#A079849__3213E83FDB6D7A43]:

As I’ll show later, this dynamically generated name prevents any kind of query plan forcing. But as of SQL Server 2014, we can include indexes in our table type definitions. More importantly, we can name those indexes:

create type dbo.TypeWithIndex
    as table ( id int index IX_TypeWithIndex );
go
declare @ids dbo.TypeWithIndex;
select * from @ids;

This has a primary key named [@ids].[IX_TypeWithIndex] which is what we expect.

Plan Forcing is Not Allowed For TVPs with PKs

Where does plan forcing fit in your tool belt? For me, I’ve never used plan forcing as a permanent solution to a problem, but when I see a query that often suffers from suboptimal query plan choices, I look to plan guides to give me some stability while I work at fixing and deploying a permanent solution.

Plan forcing in SQL Server involves specifying a plan for a particular query. But the primary key name for a table variable is always different so the specified query plan is never going to match. In other words SQL Server is never going to use your query plan because your plan includes index [@ids].[PK__#A079849__3213E83FDB6D7A43], but the query it’s compiling has a differently named index like [@ids].[PK__#AA02EED__3213E83FAF123E51].

If you try, this is what that failure looks like:

USE PLAN
If you try to use the USE PLAN query hint, you’ll get error 8712:

Msg 8712, Level 16, State 0, Line 15
Index '@ids.PK__#B305046__3213E83F57A32F24', specified in the USE PLAN hint, does not exist. Specify an existing index, or create an index with the specified name.

Plan Guides
If you try to force the plan by creating a plan guide, you’ll also see message 8712:

select *
from sys.plan_guides
outer apply fn_validate_plan_guide(plan_guide_id)
-- Index '@ids.PK__#BA711C0__3213E83F44A3F2C8', specified in the USE PLAN hint, does not exist. Specify an existing index, or create an index with the specified name.

Query Store
And if you try to force a plan using SQL Server 2016’s Query Store, you’ll see this:

select plan_id, last_force_failure_reason_desc
from sys.query_store_plan
where is_forced_plan = 1
-- last_force_failure_reason_desc = 'NO_INDEX'

Summary

When defining table variables, avoid primary key or unique key constraints. Opt instead for named indexes if you’re using SQL Server 2014 or later. Otherwise, be aware that plan forcing is limited to queries that don’t use these table variables.

Takeaway: The best way to avoid tempdb GAM and PFS contention caused by table-valued parameters (TVPs) is to use Memory-Optimized Table Variables.

This is my last post about tempdb. You can’t believe how wonderful it is to type that.*

SQL Server 2014 can eradicate tempdb contention and I didn’t even know it. Just yesterday I was saying that if I could have my one SQL Server wish, it would be to use table-valued parameters at high frequency without suffering from tempdb latch contention on GAM or PFS.

Then, I saw Jos de Bruijn’s article Improving temp table and table variable performance using memory optimization. He pointed out how In-Memory OLTP can alleviate excessive tempdb use. The piece that I was most interested in involves SQL Server 2014’s Memory-Optimized Table Parameters. Jos describes them as a great solution for “workloads that intensively use TVPs”.

So now in addition to database with types like this:

CREATE TYPE dbo.BIGINTSET AS TABLE
    ([Value] BIGINT NOT NULL INDEX IX_BIGINTSET);

I can add an additional memory optimized type like this:

CREATE TYPE dbo.BIGINTSET_OLTP AS TABLE
    ([Value] BIGINT NOT NULL INDEX IX_BIGINTSET_OLTP)
    WITH (MEMORY_OPTIMIZED=ON);

Any procedures that use the new table type BIGINTSET_OLTP will not touch tempdb.

It seems pretty easy doesn’t it? In this example, the reason I don’t just replace the existing type is because I want to be very deliberate about choosing memory optimized parameters. By adding a new table type, I make that choice in each procedure or query on a case by case basis.

To see whether this technique avoids hitting tempdb as advertised, I wrote this demo.

A Complete Demo

use master
GO

IF ( DB_ID('MyTVPTest') IS NOT NULL )
BEGIN
    ALTER DATABASE MyTVPTest SET SINGLE_USER WITH ROLLBACK IMMEDIATE;
    DROP DATABASE MyTVPTest;
END
GO

CREATE DATABASE MyTVPTest;

ALTER DATABASE MyTVPTest
    ADD FILEGROUP MyTVPTest_MOD CONTAINS MEMORY_OPTIMIZED_DATA;

ALTER DATABASE MyTVPTest
    ADD FILE (name='MyTVPTest_MOD1', filename='c:\sqldata\MyTVPTest_MOD1')
    TO FILEGROUP MyTVPTest_MOD;
GO

use MyTVPTest;
GO

CREATE TYPE dbo.MyMOIntSet AS TABLE
    ([Value] INT NOT NULL INDEX IX_MyMOIntSet)
    WITH (MEMORY_OPTIMIZED=ON);

CREATE TYPE dbo.MyIntSet AS TABLE
    ([Value] INT NOT NULL INDEX IX_MyIntSet);
GO

CREATE TABLE dbo.MyTable
(
    id int not null primary key
);

INSERT dbo.MyTable (id)
SELECT top 1000 ROW_NUMBER() OVER (ORDER BY (SELECT 1))
FROM sys.messages;
GO

CREATE PROCEDURE dbo.s_FetchMyTableRowsWithFilter
    @Filter MyIntSet READONLY
AS

    SELECT MT.id
    FROM dbo.MyTable MT
    JOIN @Filter FT
        ON FT.[Value] = MT.id;
GO

CREATE PROCEDURE dbo.s_FetchMyTableRowsWithMOFilter
    @Filter MyMOIntSet READONLY
AS

    SELECT MT.id
    FROM dbo.MyTable MT
    JOIN @Filter FT
        ON FT.[Value] = MT.id;
GO

-- Call procedure using Memory Optimized table type
DECLARE @F_MO MyMOIntSet;
INSERT @F_MO ([Value]) VALUES (1), (3), (5);
EXEC dbo.s_FetchMyTableRowsWithMOFilter @F_MO;

-- Call procedure using regular table type
DECLARE @F MyIntSet;
INSERT @F ([Value]) VALUES (1), (3), (5);
EXEC dbo.s_FetchMyTableRowsWithFilter @F;

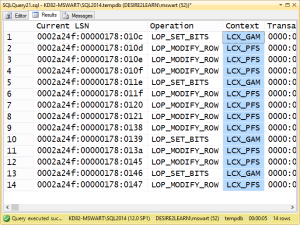

Look at the last two queries. The first one invokes a procedure that uses a memory-optimized table variable. The other one invokes a different procedure that uses a standard table variable. Then look at what’s going on in tempdb’s transaction log (using techniques found here). With the standard table variable I see this sort of activity in tempdb’s log:

But I see that memory-optimized queries avoids all tempdb activity. It’s not just the logging activity that’s avoided, all tempdb activity is avoided. The tempdb is simply not touched in this case.

Caveats

Notice a few things:

1. This mainly addresses tempdb contention experienced by workloads with extremely frequent TVP use (thousands per second).
2. In SQL Server 2014, memory-optimized table variables precludes the use of parallel queries.
3. As the feature name suggests, the temp tables live in memory.

Luckily the high frequency described by the first caveat means that the queries I use must be as lightweight as possible. And that means that I don’t mind the second or third caveat so much. Aaron Bertrand dives deeper on the performance of Memory-Optimized table variables at Hekaton with a twist: In-memory TVPs – Part 3.

In the past, my colleagues and I have been incredibly frustrated at this bottleneck. A bottleneck that could not be fixed, not even with dollars. And so I’m looking forward to this feature more than any other single feature introduced in 2014 or 2016. We vendors are often constrained to use only those features present in every SQL Server version we support. In my case, it will be a while before we de-support SQL Server 2012 but that day will be like Christmas.

—

* I’ve written before about TVPs and the different kinds of contention caused by frequent use of TVPs:
